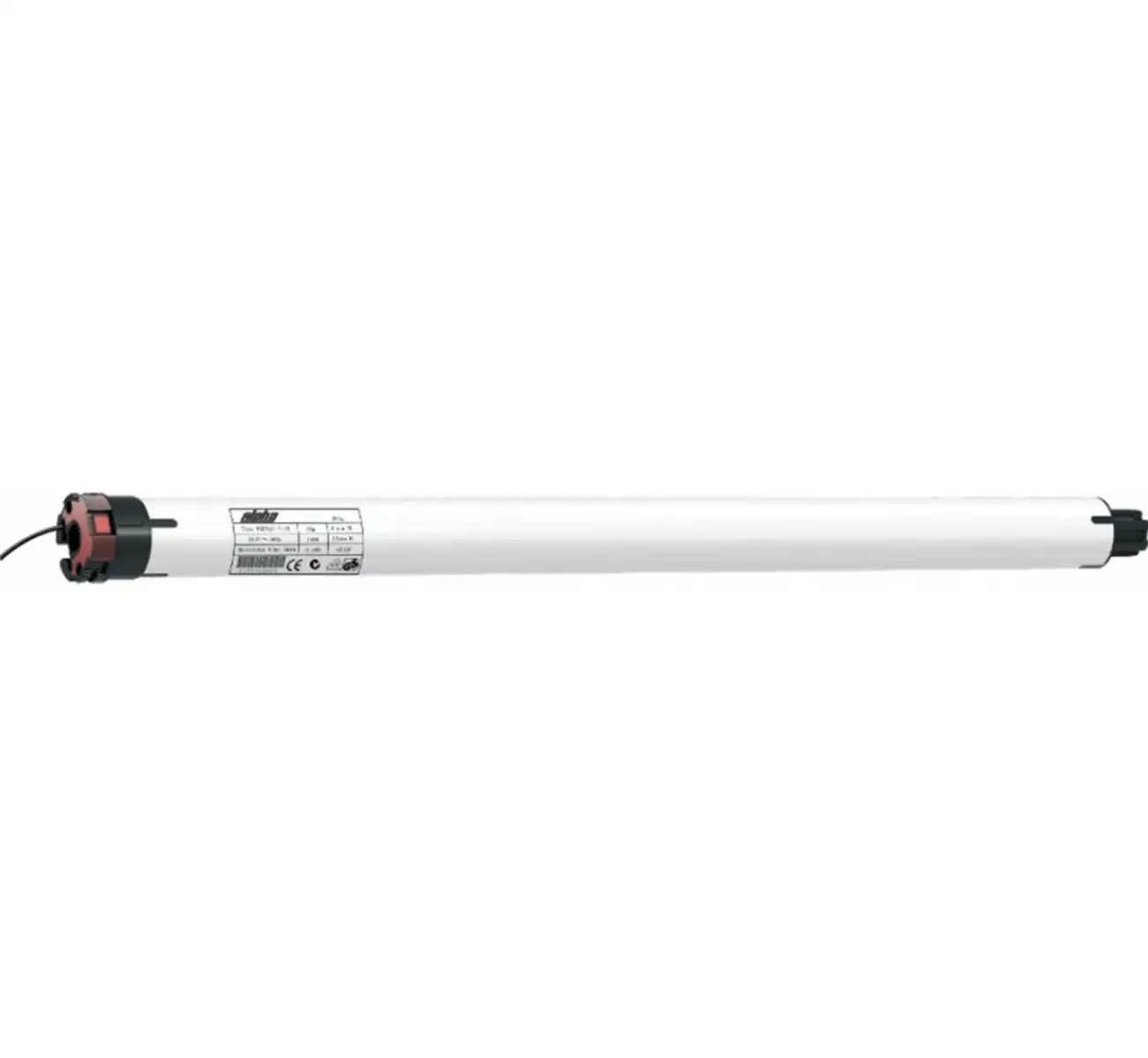

Alpha WSER40 10/14 Universal Roller Blind Motor

⚠️ This is a 240V hardwired motor and requires an electrician. If you need a battery motor, see the WSERD series HERE.

The Alpha WSER40 10/14 Universal Roller Blind Motor is a powerful 240V internal tubular motor engineered for smooth, reliable automation of roller blinds and projection screens. Designed as a “one motor fits most” solution, it offers seamless compatibility with a wide range of blind systems while delivering strong lifting capacity, quiet operation, and simple wireless control.

With a 10Nm torque output and 14rpm speed, the Alpha WSER40 10/14 Universal Roller Blind Motor is ideal for medium to large blinds, supporting fabric and bottom-bar loads up to 20kg on a 50mm tube. The motor features an electronic limit switch, allowing precise and repeatable top and bottom stop points that eliminate manual adjustment. Its built-in receiver and external antenna enable wireless limit setting and strong signal range for dependable remote operation.

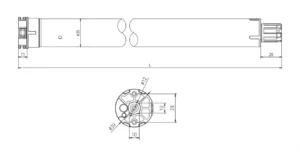

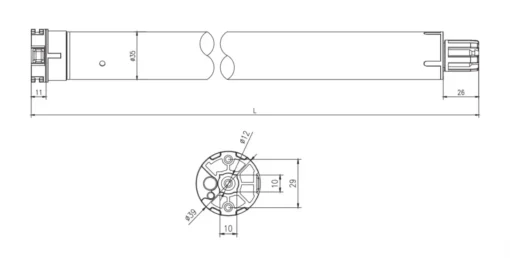

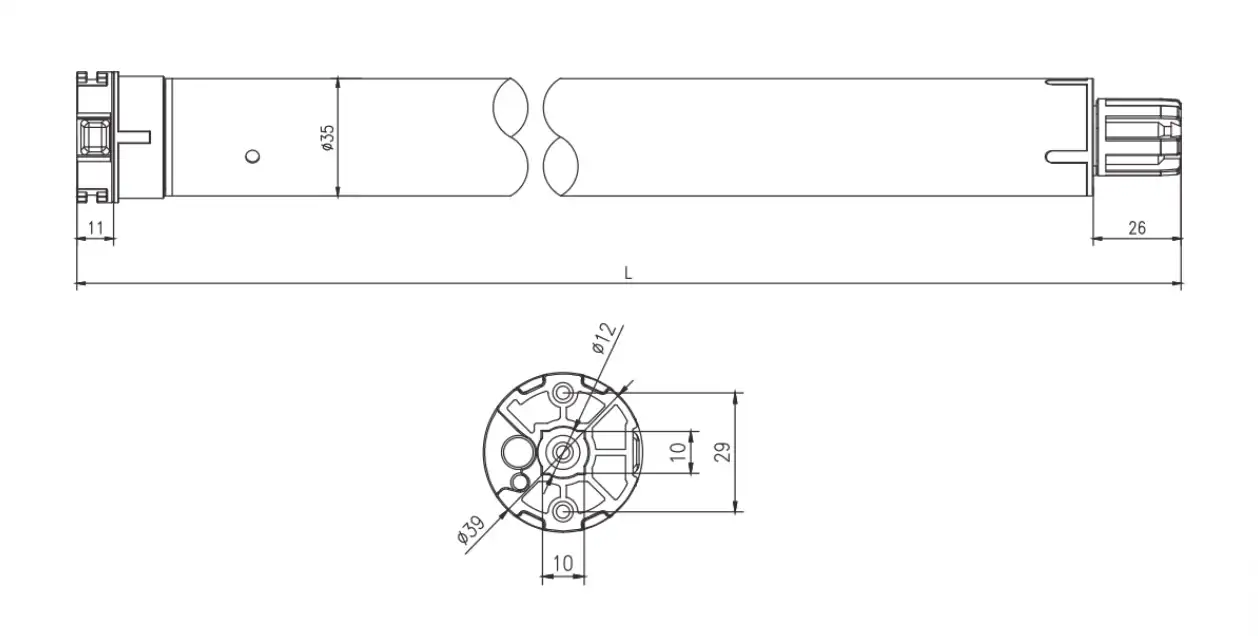

Constructed with a 35mm motor diameter, IP44 protection rating, and a total length of 560mm, this motor is suitable for residential and commercial roller blinds, projection screens, and general automation applications. It works with Acmeda 43–49mm tubes, Blindware 45mm tubes, and can be adapted to other systems using optional crowns and drives.

The Alpha WSER40 10/14 Universal Roller Blind Motor includes a motor plate and crown & drive set, making installation efficient for installers and DIY users.

If you need strong lifting power, long-term durability, and flexible compatibility, this motor is one of the most capable models in Alpha’s hardwired roller motor range.

Works perfectly with:

• Alpha Navigator Series Remote

• Alpha Pioneer Series Remote

• Alpha Universal Receiver (for multi-channel control)

• Roller Blind Tube Adaptors (43–49mm, 45mm, 50mm)

• Alpha Motor Installation Brackets and Wiring Kits

FAQs

What blinds are compatible with the Alpha WSER40 10/14 Universal Roller Blind Motor?

The Alpha WSER40 10/14 Universal Roller Blind Motor is compatible with most internal roller blind systems, including Acmeda 43–49mm tubes, Blindware 45mm tubes, and other systems using the correct crowns and drives.

How powerful is the Alpha WSER40 10/14 Universal Roller Blind Motor?

It delivers 10Nm of torque, suitable for lifting loads up to approximately 20kg on a 50mm tube, making it ideal for medium to large blinds.

Does the Alpha WSER40 10/14 Universal Roller Blind Motor support wireless control?

Yes. The motor includes a built-in receiver and external antenna, allowing wireless limit setting and remote operation.

What protection rating does the Alpha WSER40 10/14 Universal Roller Blind Motor have?

It has an IP44 protection index, suitable for indoor and semi-protected environments.

Can this motor be used for projection screens?

Yes. Its universal compatibility and strong torque output make it suitable for automated projection screens.

What is included with the Alpha WSER40 10/14 Universal Roller Blind Motor?

It includes a crown & drive (A2310) and a motor plate (A3304), ready for standard roller blind installation.
