Alpha WSER50 10/27 Universal Motor

⚠️ This is a 240V hardwired motor and requires an electrician for wiring. If you need a battery motor, see the WSERD series HERE.

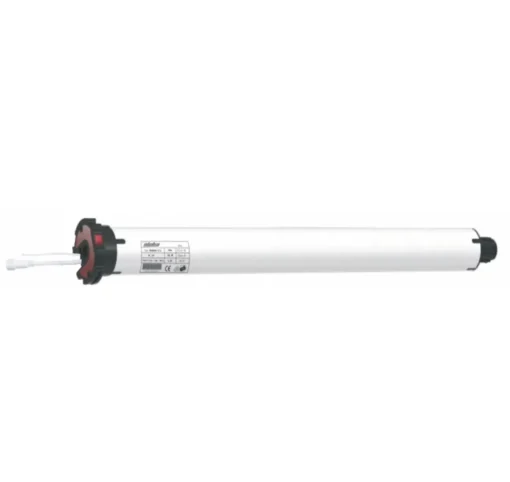

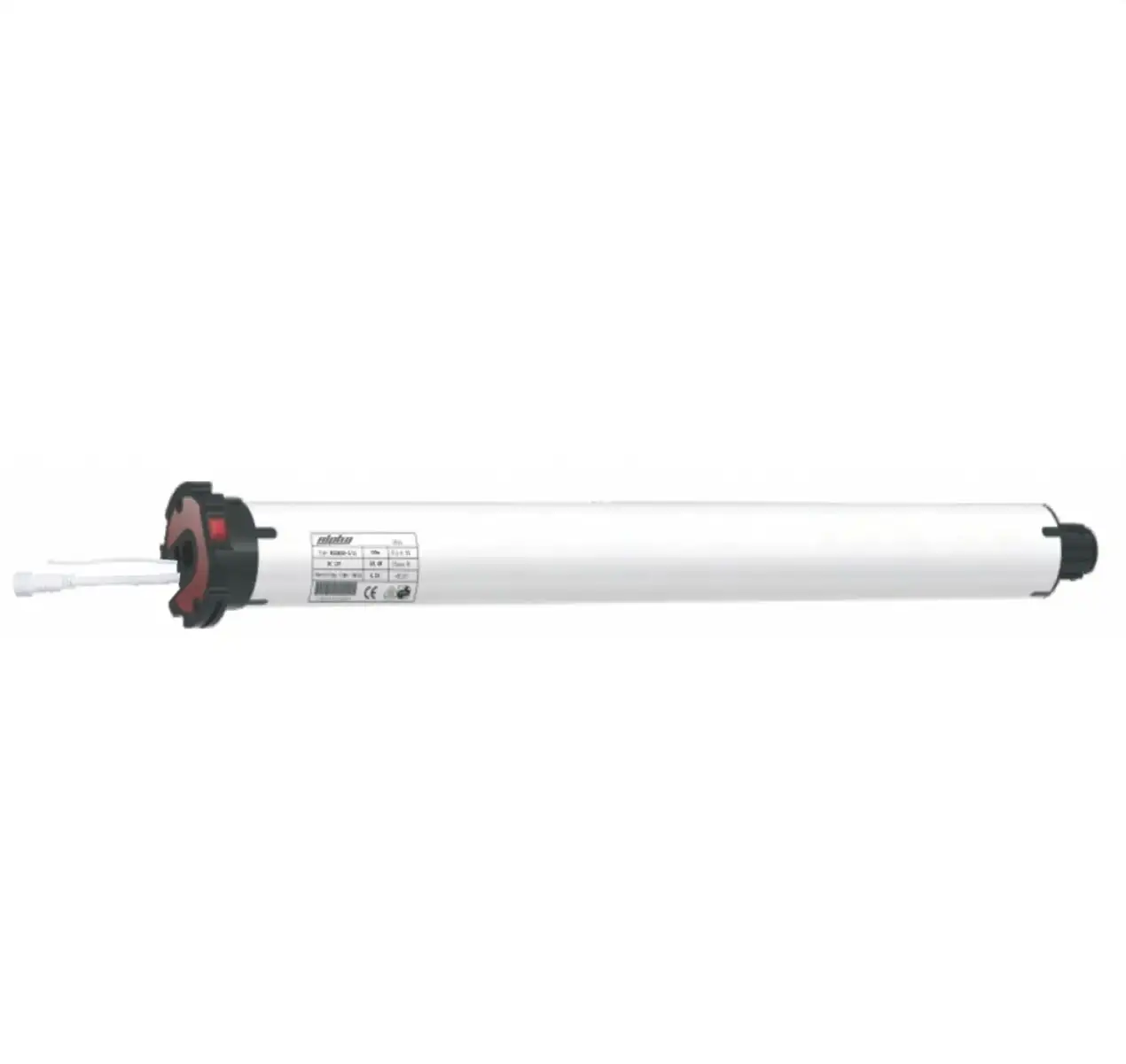

The Alpha WSER50 10/27 Universal Motor is a compact yet powerful 240V tubular motor specifically engineered for external straight drop blinds, zip screens, roller shutters, and large internal blinds requiring smooth automation and reliable torque control. As part of Alpha’s popular WSER50 series, the Alpha WSER50 10/27 Universal Motor offers industry-leading performance for both residential and commercial outdoor shading systems.

With 10Nm torque and a fast 27rpm speed, this motor is ideal for applications where responsiveness, strong lifting capacity, and fabric tensioning are essential. The built-in torque stop function allows the system to gently stop on mechanical stoppers at the top limit in side-channel systems and apply controlled tension when the blind is fully lowered. This makes it highly effective for zip screens, café blinds, and any external straight-drop system requiring consistent, reliable tensioning.

The motor includes a built-in receiver, electronic limit switches, and wireless limit setting, paired with an external antenna for strong signal range. It is fully compatible with RS001 and RS002 Sun/Wind Sensors, and includes Alpha’s automatic safety protocol: when an awning is down, the motor expects a sensor “heartbeat” every 20 minutes. If the signal stops (typically from a flat battery), the motor automatically retracts after about 30 minutes to protect the system.

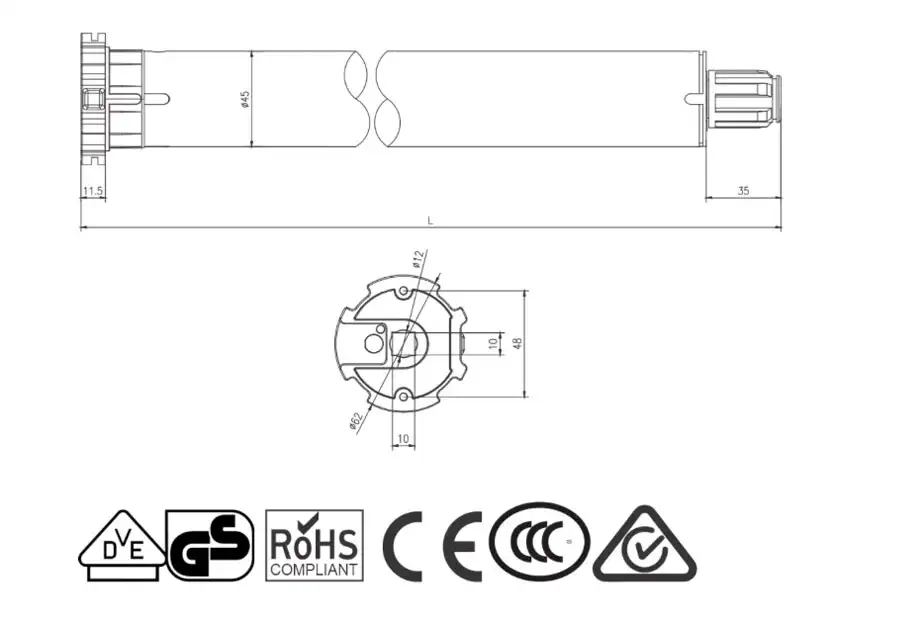

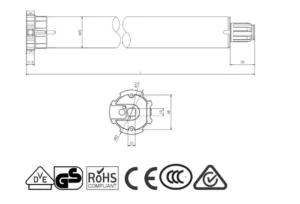

Featuring a 45mm motor diameter body and a total length of 570mm, the Alpha WSER50 10/27 Universal Motor fits into 63mm and larger tubes, making it versatile across many blind and shutter configurations. It includes the A2424 crown & drive set and A3415 universal motor bracket.

This motor is a dependable choice for external drop systems, roller shutters, and medium-to-large automated blinds needing precise control and responsive safety functions.

---

Works perfectly with:

• Alpha RS001 Sun & Wind Sensor

• Alpha RS002 Sun & Wind Sensor

• Alpha Navigator Series Remote

• Alpha Pioneer Series Remote

• External Zip Screen Hardware Kits

• 63mm and 70mm Roller Blind Tubes

• Alpha A3415 Universal Motor Bracket (included but upsell for spares)



---

FAQs

What applications suit the Alpha WSER50 10/27 Universal Motor?

The Alpha WSER50 10/27 Universal Motor is ideal for external straight drop blinds, zip screens, roller shutters, projection screens, and larger internal blinds.

What is the torque stop feature on the Alpha WSER50 10/27 Universal Motor?

The torque stop function protects stoppers at the top limit and tensions fabric at the bottom, ensuring safe operation on side-channel and zip systems.

Does the Alpha WSER50 10/27 Universal Motor support wireless controls?

Yes. It includes a built-in receiver and supports wireless limit setting and remote operation.

Can the Alpha WSER50 10/27 Universal Motor be used with sun/wind sensors?

Yes. It works with RS001 and RS002 sensors and includes an automatic safety retract if heartbeat signals from the sensor are not detected.

What tube sizes fit the Alpha WSER50 10/27 Universal Motor?

It suits 63mm and larger tubes, making it compatible with many external awning and zip screen systems.

What is included with the Alpha WSER50 10/27 Universal Motor?

The motor comes with the A2424 Crown & Drive set and the A3415 motor bracket.

What is the protection rating?

The motor has an IP44 protection index, suitable for external installations with appropriate shielding.

---

Comparison Table

Feature	Alpha WSER50 10/27 Universal Motor	Alpha WSER50 G 20/17 Motor	Alpha WSER50 30Nm Motor
Torque	10Nm	20Nm	30Nm
Speed	27rpm	17rpm	17rpm
Best Use	Zip screens, straight drops, roller shutters	Larger straight drops, shutters	Large external blinds
Torque Stop	Yes	Yes	Yes
Built-in Receiver	Yes	Yes	Yes
Wireless Limits	Yes	Yes	Yes
Sensor Compatibility	RS001/RS002	RS001/RS002	RS001/RS002
Motor Diameter	45mm	50mm	50mm
IP Rating	IP44	IP44	IP44
