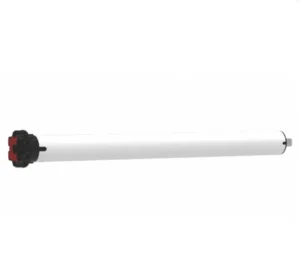

Alpha WSER50 50/13 LED CA Motor

🚚 Next-Day Express Post Australia-Wide

📦 Tracking number supplied with every order

The Alpha WSER50 50/13 LED CA Motor is the latest innovation in Alpha’s cassette awning motor range, combining high-torque performance with integrated LED lighting control. Designed specifically for premium cassette awnings, the Alpha WSER50 50/13 LED CA Motor not only automates the awning but also powers and controls the LED lighting in the arms, creating a complete shading and ambience solution in one compact system.

Powered by 240V AC for motor operation, this model incorporates a built-in 24V DC LED driver capable of delivering up to 80 watts of LED output. This eliminates the need for external LED transformers and reduces installation time. When paired with the Navigator RE301-LED remote, users can switch LEDs on and off and smoothly dim them—all from the same control system used for operating the awning.

With 50Nm torque and a 13rpm operating speed, the Alpha WSER50 50/13 LED CA Motor is built for large cassette awnings, heavy fabrics, and wide spans. Its torque sensing allows the awning to stop safely on resistance, tension the fabric in the fully closed position, and protect the system if obstructions are detected.

The motor supports wireless limit setting, offers electronic limit switches, includes an external antenna, and is compatible with sun, wind, and motion sensors. Using Alpha’s smart safety design, the motor expects sensor pulses every 20 minutes; if none are received for 30 minutes, it retracts automatically to prevent damage from wind or sensor malfunction.

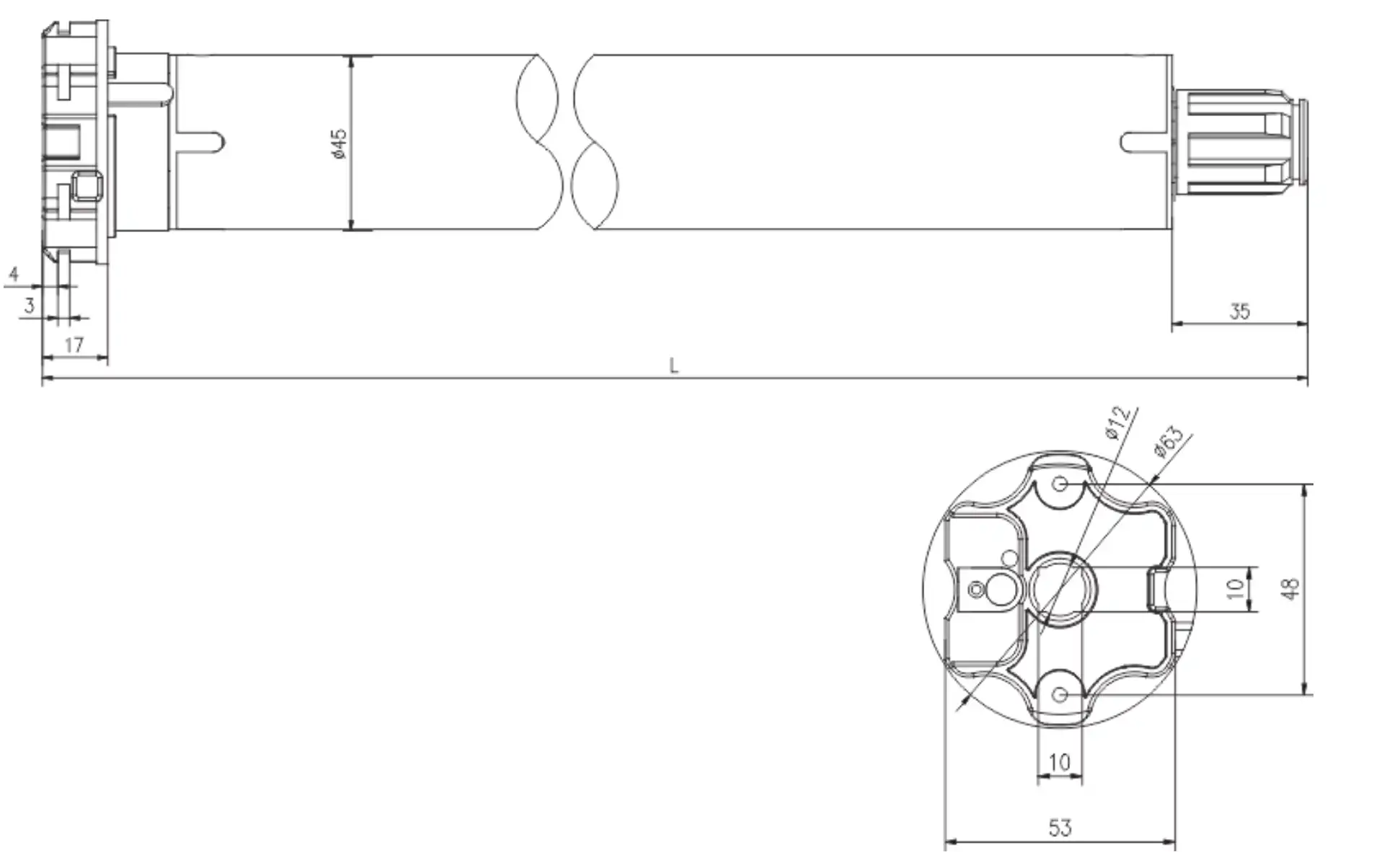

At 966mm total length and housed in a 45mm motor body, it is built for heavy-duty outdoor installations requiring long-term performance, lighting integration, and full automation capability. It includes the A2409 Crown & Drive and A3440 Motor Bracket.

This is the definitive motor for premium cassette awnings with built-in LED lighting.

---

Works perfectly with:

• Navigator RE301-LED Remote (required for LED dimming)

• Alpha RS001 Sun/Wind Sensor

• Alpha RS002 Sun/Wind Sensor

• Alpha Motion Sensor

• Cassette Awning Hardware Kits

• 63mm / 70mm / 78mm Tubes

• LED Arm Lighting Kits (up to 80W)



---

FAQs

What makes the Alpha WSER50 50/13 LED CA Motor different from standard motors?

The Alpha WSER50 50/13 LED CA Motor includes a built-in 24V DC LED driver (up to 80W), allowing it to control LED arm lighting directly without separate transformers.

Does the Alpha WSER50 50/13 LED CA Motor support dimming?

Yes. When used with the Navigator RE301-LED remote, users can turn LEDs on/off and dim them smoothly.

What torque does the Alpha WSER50 50/13 LED CA Motor deliver?

It provides 50Nm, making it suitable for large cassette awnings and heavy outdoor fabrics.

Does it work with sensors?

Yes. It is compatible with RS001/RS002 Sun & Wind Sensors and Alpha Motion Sensors. The motor retracts automatically if sensor communication stops.

Can this motor be used for ZIP screens or straight drops?

Yes. Although designed for cassette awnings, it also works for straight drops, ZIP systems, and roller shutters where 50Nm is required.

How does the automatic safety function work?

If the awning is extended and the sensor stops sending pulses for approximately 30 minutes, the motor retracts automatically to prevent wind damage.

What is included?

Crown & Drive A2409 and Motor Bracket A3440.

---

Comparison Table

Feature	Alpha WSER50 50/13 LED CA Motor	WSER50 50/13 Universal Motor	WSER50 30/17 Cassette Motor
Torque	50Nm	50Nm	30Nm
Speed	13rpm	13rpm	17rpm
LED Output	Yes (24V, 80W)	No	No
Tension-Based Limits	Yes	No (torque stop)	Yes
Best For	Cassette awnings with LED lighting	Large blinds, shutters	Premium cassette awnings
Sensor Compatible	Yes	Yes	Yes
Wireless Limits	Yes	Yes	Yes
Motor Body	45mm	45mm	45mm
Length	966mm	600mm	570mm
