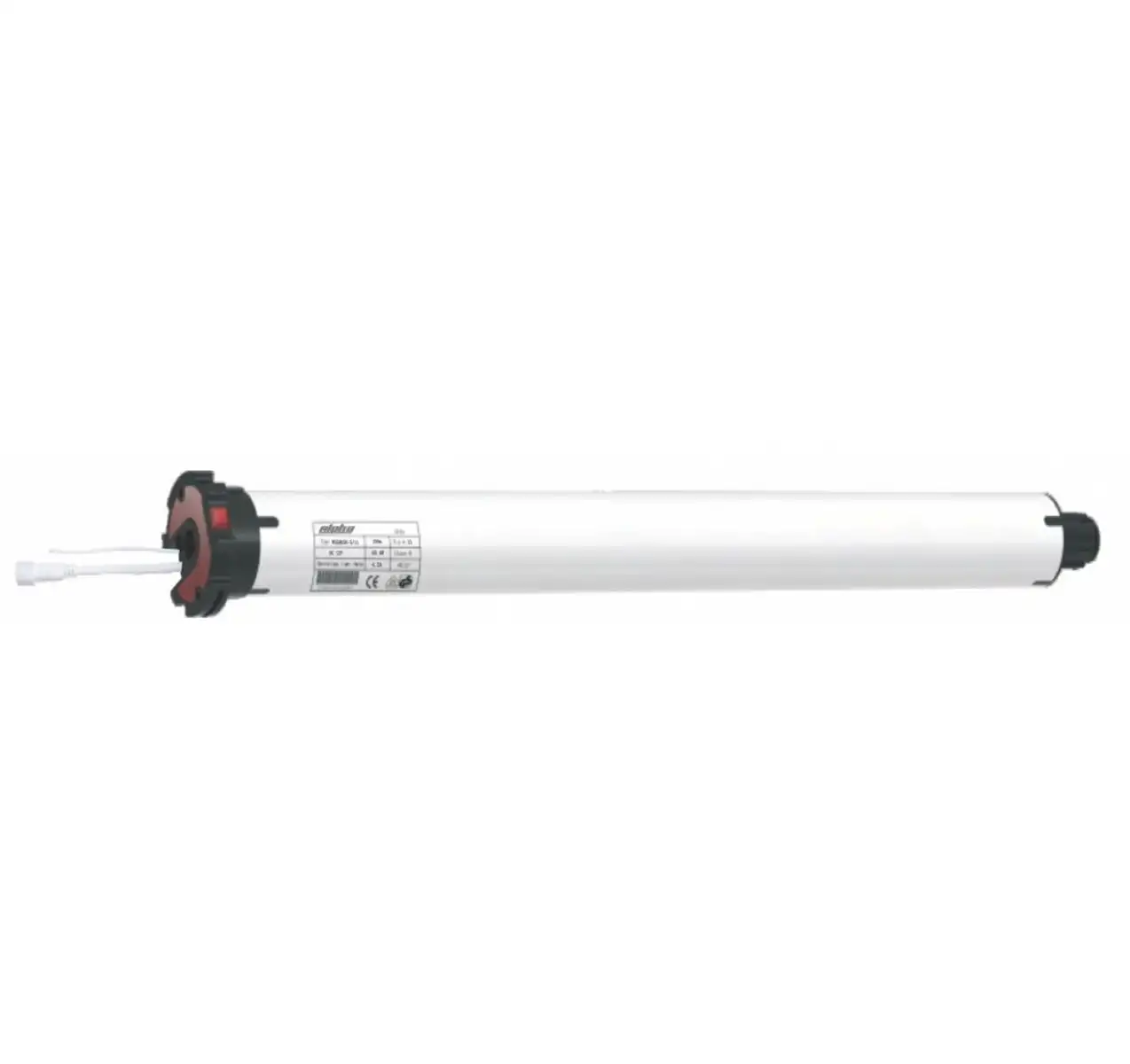

Alpha WSER50 50/13 Universal Motor

⚠️ This is a 240V hardwired motor and requires an electrician for wiring. If you need a battery motor, see the WSERD series HERE.

The Alpha WSER50 50/13 Universal Motor is one of the most powerful tubular motors in the Alpha range, engineered for large external blinds, heavy zip screens, roller shutters, and premium cassette awnings. With an impressive 50Nm torque and a 13rpm operating speed, the Alpha WSER50 50/13 Universal Motor is designed for oversized and high-load systems that require maximum lifting strength, precise automation, and reliable resistance-based stopping.

Like all motors in the WSER50 Universal Series, this model features Alpha’s signature torque stop function—a smart protective feature that detects resistance to stop the motor safely. This allows the system to stop on top stoppers in side-channel systems, tension the fabric at the fully lowered position, and avoid overstressing frame components. The motor includes electronic limit switches, a built-in receiver, wireless limit setting, and an external antenna for consistent remote-control performance.

The Alpha WSER50 50/13 Universal Motor is fully compatible with RS001 and RS002 Sun/Wind Sensors, enabling intelligent weather-responsive automation. When connected to a sensor, the motor expects a heartbeat signal every 20 minutes. If this signal fails (e.g., flat sensor battery), and the awning is extended, the motor automatically retracts after approximately 30 minutes, protecting the system from potential wind damage.

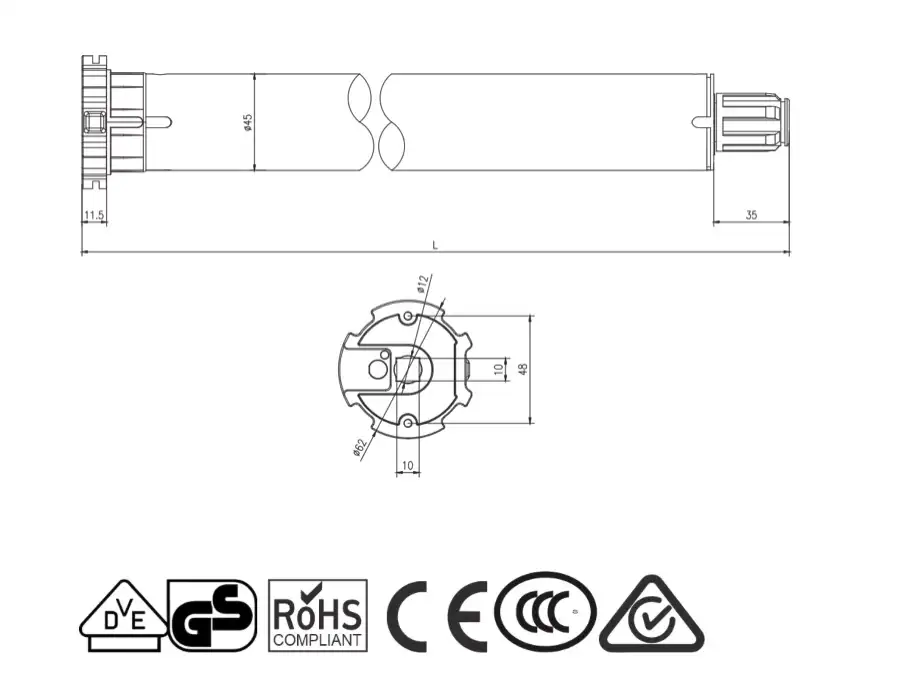

With a robust 45mm diameter motor body, a 600mm total length, IP44 weather protection, and wide compatibility with large tubes (63mm or bigger), this model delivers industrial-grade strength while maintaining smooth, quiet operation. It includes the A2404 Crown & Drive set and A3415 motor bracket for installation.

This is the ideal motor for commercial blinds, large zip screens, tall straight-drop awnings, roller shutters, alfresco enclosures, and any system requiring exceptional lifting power with fully automated protection.

---

Works perfectly with:

• Alpha RS001 Sun & Wind Sensor

• Alpha RS002 Sun & Wind Sensor

• Alpha Motion Sensor

• Navigator Series Remote

• Pioneer Series Remote

• 63mm / 70mm / 78mm Roller Tubes

• Heavy-Duty Zip Screen & Straight Drop Hardware



---

FAQs

What applications suit the Alpha WSER50 50/13 Universal Motor?

The Alpha WSER50 50/13 Universal Motor is ideal for large external blinds, oversized zip screens, tall straight-drop systems, roller shutters, and cassette awnings requiring high lifting torque.

What is the torque stop function?

The torque stop feature senses resistance to stop the motor safely, protecting top stoppers, tensioning fabric when fully down, and preventing damage from obstructions.

Does the Alpha WSER50 50/13 Universal Motor support wireless controls?

Yes. It includes a built-in receiver, wireless limit setting, and remote compatibility.

Can this motor be used with sensors?

Yes. It works with RS001 and RS002 Sun/Wind Sensors. If sensor pulses stop for 30 minutes, the motor retracts automatically for protection.

What tube sizes does it fit?

It fits 63mm and larger tubes. The motor body is 45mm in diameter.

What is included in the box?

The motor comes with Crown & Drive A2404 and motor bracket A3415.

Does it suit roller shutters?

Yes. Its 50Nm torque output is capable of lifting many medium–large roller shutters.

---

Comparison Table

Feature	Alpha WSER50 50/13 Universal Motor	Alpha WSER50 30/17 Motor	Alpha WSER50 20/17 Motor
Torque	50Nm	30Nm	20Nm
Speed	13rpm	17rpm	17rpm
Best Use	Large blinds, heavy zip screens, shutters	Large blinds, cassette awnings	External blinds, medium shutters
Torque Stop	Yes	Yes	Yes
Wireless Limits	Yes	Yes	Yes
Built-in Receiver	Yes	Yes	Yes
Sensor Compatibility	RS001/RS002	RS001/RS002	RS001/RS002
Motor Diameter	45mm	45mm	50mm
Protection Rating	IP44	IP44	IP44
