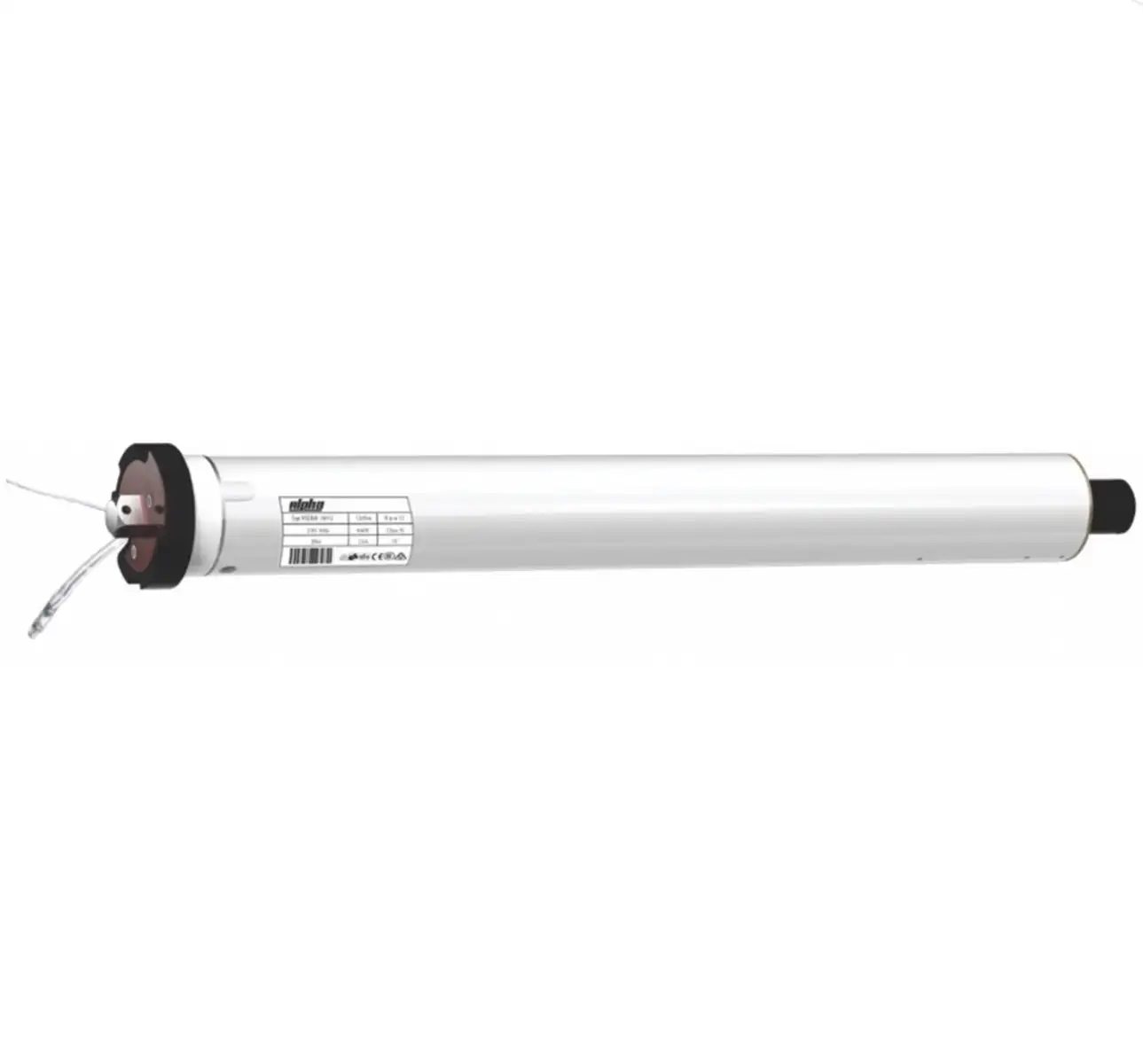

Alpha WSER60 100/12 Universal Motor

The Alpha WSER60 100/12 Universal Motor is the super heavy-duty powerhouse of the Alpha WSER range, engineered for extra-large folding arm awnings, oversized roller shutters, and large external straight-drop or ZIP systems. With an enormous 100Nm of torque, this motor is built for applications where strength, reliability, and long-term performance are essential.

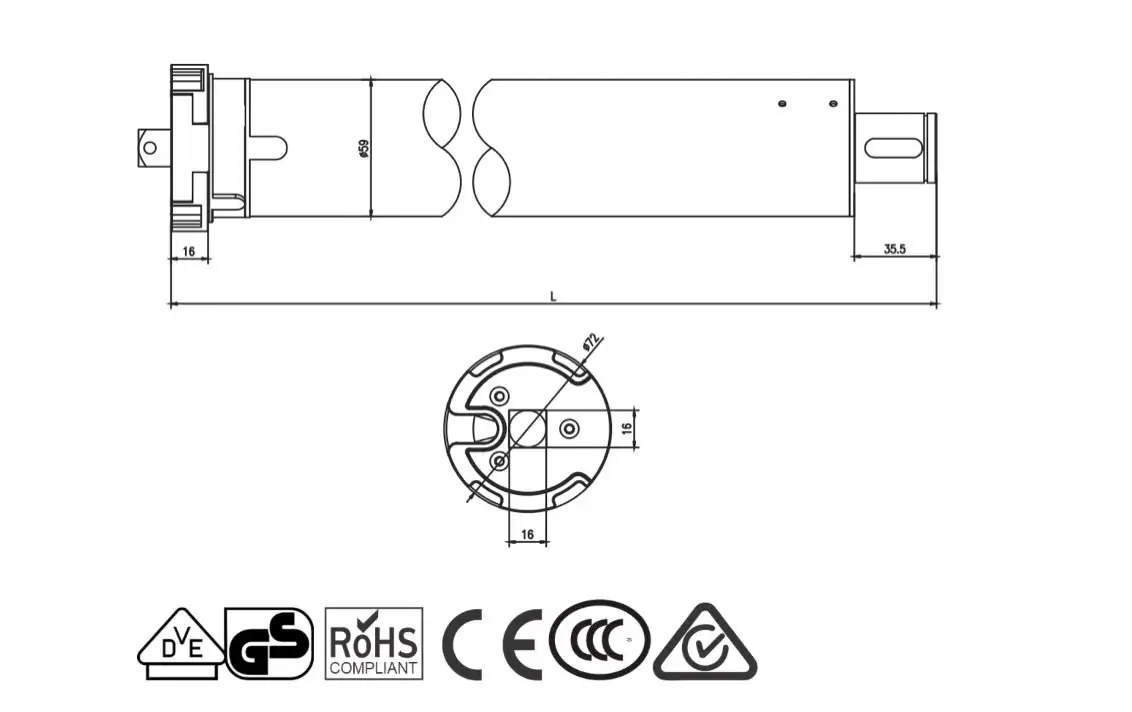

Designed with a 60mm diameter barrel, the WSER60 100/12 fits only larger tube systems—such as 78mm galvanised round tubes with keyway or 70mm octagonal roller shutter tubes—ensuring optimal compatibility with commercial-grade installations.

The motor includes a built-in receiver, electronic limit switches, wireless limit setting, and an external antenna, making setup fast and operation seamless. Paired with wind or motion sensors, it adds an additional layer of protection—ideal for large awnings exposed to strong weather conditions. Despite being a universal motor, it is used extensively for extra-large folding arm awnings thanks to its strength and sensor compatibility.

Whether you’re automating a massive outdoor awning, a commercial drop screen, or large roller shutters, the Alpha WSER60 100/12 Universal Motor delivers smooth, powerful, and dependable performance for years.

Works Perfectly With

• Navigator Series Remotes

• Pioneer Series Remotes

• Alpha RS001 Sun & Wind Sensor

• Alpha RS002 Sun & Wind Sensor

• Alpha Motion Sensor (for awnings)

• 78mm Gal Round Tubes (keyway)

• 70mm Octagonal Roller Shutter Tubes

• Large Folding Arm Awnings

• Commercial ZIP Screens

FAQs

What is the Alpha WSER60 100/12 Universal Motor used for?

It is designed for extra-large outdoor awnings, commercial roller shutters, and heavy ZIP/drop screens. Its 100Nm torque makes it ideal for oversized applications.

What tube sizes does the Alpha WSER60 100/12 Universal Motor work with?

Due to its 60mm motor body, it requires 78mm galvanised round tube with keyway or 70mm octagonal roller shutter tube.

Does the Alpha WSER60 100/12 Universal Motor work with wind or motion sensors?

Yes. It is fully compatible with Alpha wind and motion sensors, adding protection by retracting the awning during unsafe conditions.

Does this motor have wireless limit setting?

Yes. Limits are set electronically using wireless programming, making installation quick and accurate.

How powerful is the Alpha WSER60 100/12 Universal Motor?

It produces 100Nm of torque, making it one of the strongest motors in the Alpha range and suitable for large commercial installations.

Is it suitable for folding arm awnings?

Yes. It is specifically recommended for extra-large folding arm awnings, where additional strength and safety features are required.
